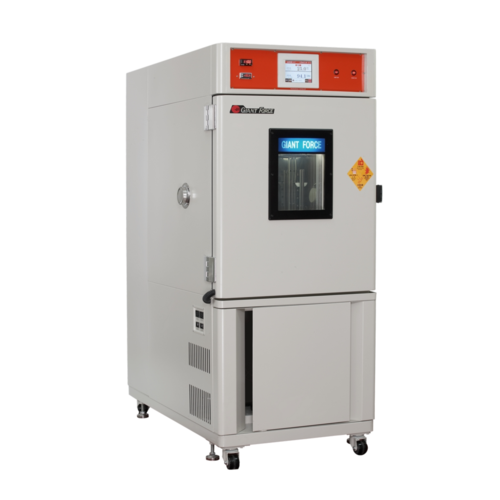

Programmable Temp. & Humi. Chamber

System Capacity：It could sign in 150 programs × 1500 partitions, partitions can be optionally divided and programs can link up to each other.
Loop configuration：9999 × 999 looping time, can be divided into 5 independent sub-loops.
Output：Intelligent PID+SSR/SCR two-way synchronous output, built-in advanced slope control logic.
Data：Touch panel dialogue box display, easy operation, built-in management system of data content.
Curves drawing： When temperature, humidity and times are set up, the data can be immediately transferred into curves, actual operating curves can be attained during operations.
Time signal：3 time series control output interfaces work with 10 time control modes to execute start/halt time series planning of external components.
End temperature：At the completion of testing, you can choose to return to the normal atmospheric temperature for removing the test objects.
Safety Check：The full- functional detection system consists of 15 check items to ensure the safety of the machine. Auto-display of items, error times, and trouble-shooting instructions.
Error Tracing：Historical fault reports can be displayed, such as the reasons and occurring time record.
External Protection：Electronic over-temperature protection device is separated from the master control panel for setting the upper temperature limit of the tested object.
Communications Interface：Standard RS-232 and RS-485 interfaces can link to multi-PC for network administration and control.
SD Device：Optional SD Device can be used to replace the conventional expensive paper-feeder recorder. With the self-diagnosis function, internal recording can be optionally selected.
