High-speed camera

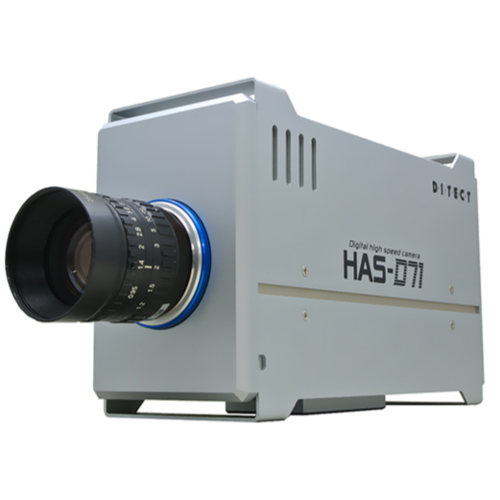

The HAS-D71 high-speed camera from DITECT
is designed for very fast events and low-light conditions. It features a high-sensitivity image sensor, allowing clear high-speed recording even when lighting is limited.

The camera records 8,000 fps at VGA resolution (640 × 480) and can reach up to 120,000 fps at reduced resolution, making it suitable for analysing extremely fast motion.

The HAS-D71 includes 16 GB of internal memory for high-speed recording and connects to a PC through USB 3.0 for easy control and data transfer. It also supports external trigger and multi-camera synchronisation, allowing several cameras to capture the same event from different angles.

Key features

- High-sensitivity image sensor for low-light recording
- 8,000 fps at 640 × 480 resolution
- Up to 120,000 fps at reduced resolution
- 8–16 GB internal recording memory
- USB 3.0 interface for PC control
- External trigger and multi-camera synchronisation
- C-mount lens compatibility

Typical applications

- Fluid and droplet analysis
- Impact and fracture testing
- Combustion and engine research
- Motion analysis in engineering and science
- Microscopy and micro-flow observation

---
